SeaWire Pro

3.330 EUR / 25.000 DKK ex. VAT

The SeaWire Pro solution is a configuration of 2x auto-rotating, directional antennas, SeaWire RouDem, and a BDU (below deck unit) that distributes the incoming network traffic. When operating one of the antennas will connect to the best performing operator tower while the other antenna will scan for new operator towers to connect to. While not in scan-mode both antennas connect simultaneously.

The SeaWire Pro solution provides Internet connection via the mobile network and offers critical connection redundancy. Internet is obtained by a data SIM-card which you insert into to the RouDem’s. Additionally, the RouDem’s has an integrated WiFi router and battery giving over 8 hours of operation.

Requirements

Find out what it takes to get online with SeaWire RouDem.

Data subscription

RouDem is a wireless broadband solution and therefore for the RouDem to receive signal you must insert a SIM card with data. The data subscription is a side purchase to the solution. To gain the best speed with RouDem it is essential to choose a data subscription from that operator who has the best coverage conditions for your use case. For the Pro solution you need two SIM cards, one for each antenna. Read more about our connectivity plan GlobalWire.

Cable

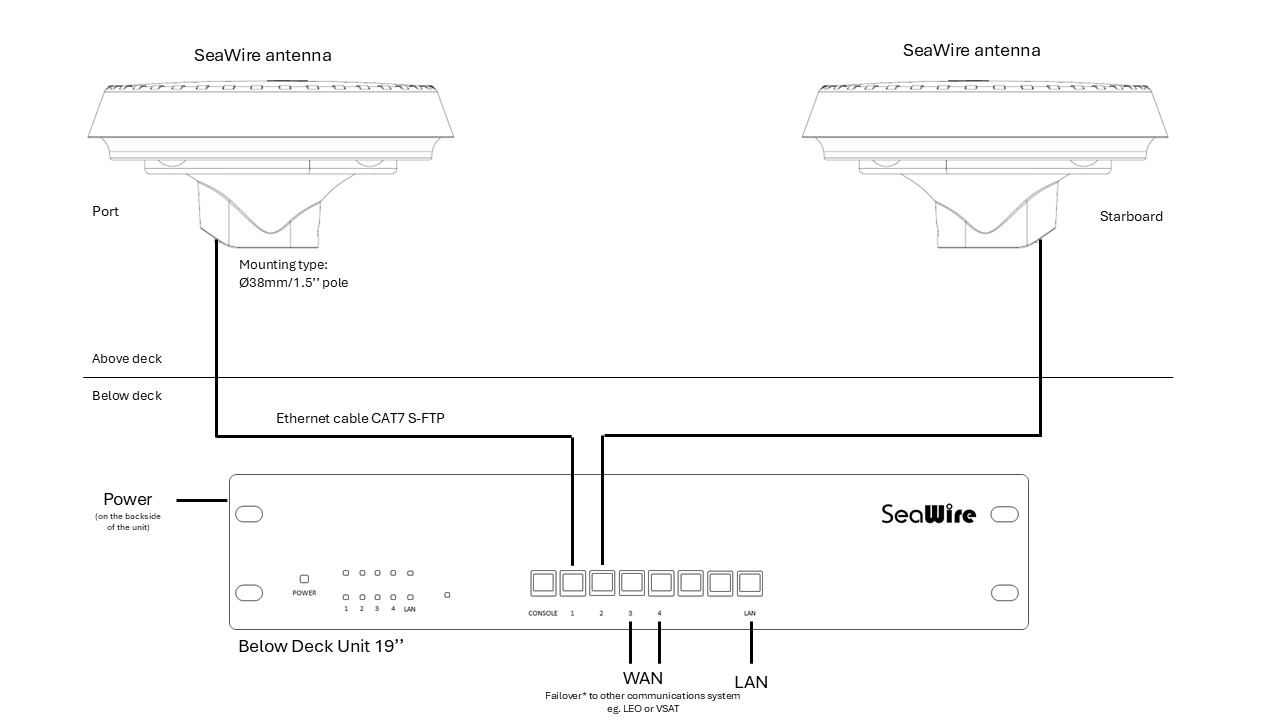

The package content DOES NOT include cables. The length of the cables depends on the location for installation. You need two cables, one for each antenna. Download the System Configuration below to get an overview.

Cable specifications:

Network cable type: Cat6 or above, UV- and water resistant, shielded, grounded.

Connector 1 & 2: RJ45 (male)

Mounting

The mounting should take place at the highest spot possible and where possible with a good all-round view with distance to other radiocommunication systems. The Mounting Bracket interfaces to a pole of Ø38mm/1.5” (outer diameter).

WiFi access

Each RouDem will create its own WiFi hotspot. In most cases it is recommended to extend the WiFi signal coverage by connecting external WiFi equipment to the LAN port in the BDU. In that way you can easily distribute the WiFi signal to where it is needed.

SeaWire Pro

SeaWire Pro is a premium plug-n-play wireless broadband solution for seafarers who is dependent on fast and stable internet connectivity. When operating, one of the antennas will connect to the best performing operator tower while the other antenna will scan for new operator towers to connect to. While not in scan-mode, both antennas connect simultaneously, doubling the data speed and offering connection redundancy. The SeaWire Pro is IP66 rated to withstand the environment at sea and is primarily designed for commercial vessels.

MiWire’s products contain a patented intelligent rotating directional antenna that points to the most optimal operator base station, controlled by our embedded software algorithm. MiWire’s auto-rotating, high-gain, directional antennas not only automatically locate the best operator base station.

Our solutions also scan and memorize the network infrastructure through an advanced, patented software algorithm to ensure maximum data speed, even when changes in the network infrastructure is made. We have developed plug-n-play solutions in which installers do not need to have knowledge of the network infrastructure in order to install. MiWire ensure high performance data speed – wherever you are.

TOP
The top part consists of an inner top and a top to avoid overheating from the sun and secure resistant for all kinds of weather.
ROATING
The rotating unit that points the antenna in the direction of the best operator tower and converts the mobile signal in the most optimal way via the integrated antenna and modem design. The mechanics are optimized to secure a long lifetime in relation to the many turns that will occur when operating at sea.
BOTTOM
The housing bottom with a micro-SIM slot and ethernet port. Inside the bottom part the ports are sealed to secure waterproofness.
MOUNTING BRACKET
The mounting bracket with a pre-assembled water-proof cable gland and pinole screws for tightening on a Ø38mm/1.5” pole (outer diameter). The mounting bracket is integrated with a fastening ring to secure waterproofness.

Specifications

Highlights
  • LTE Cat 6 or LTE Cat 4
  • Region: EMEA/APCA/Brazil or Global
  • WiFi: 802.11 b/g/n 2.4GHz
  • Data rate: 10/100 Mbps
  • Antenna gain: Directional 3-10 dBi (800-2700 MHz) / Omni directional 3-4.5 dBi (800-2700 MHz)
  • Power: 100-240V
  • Battery backup: 8 hours
  • IP rating: IPX6 (high-pressure, heavy sprays of water)
  • The embedded software intelligently calculates the position of the most optimal operator base station while the vessel is sailing. Thus MiWire can control that the RouDem is exactly pointing towards the base stations it is connected to.
  • RouDem dimensions: Ø335 mm, H: 160 mm (80 mm without mounting bracket), W: 2.1 kg (1.8 kg without mounting bracket)
  • Control unit dimensions: 19” rack, H: 44 mm, L: 423 mm, D: 330 mm, Weight: 4.1 kg
Package content

2 SeaWire RouDem, 1 BDU, 2 mounting bracket, 1 BDU power cable, 10 screws, 2 keys (1 Unbraco 4, 1 Torx 10), 1 user guide, 1 privacy policy

Hardware

2 x Lan interface

  • Connector type: RJ45
  • Data rate: 10/100 Mbit/s
  • cable length: 100 m (min. Cat6)

2 x Micro SIM card port

Frequencies

Frequency bands: 800, 900, 1800, 2100, 2600 MHz

4G LTE: Carrier aggregation

Downloads

Click on the buttons below to download

Installation

Installation of the SeaWire RouDem
